Image rendering issues in 24.5

Unread post by aliceif » 2014-04-26, 04:58

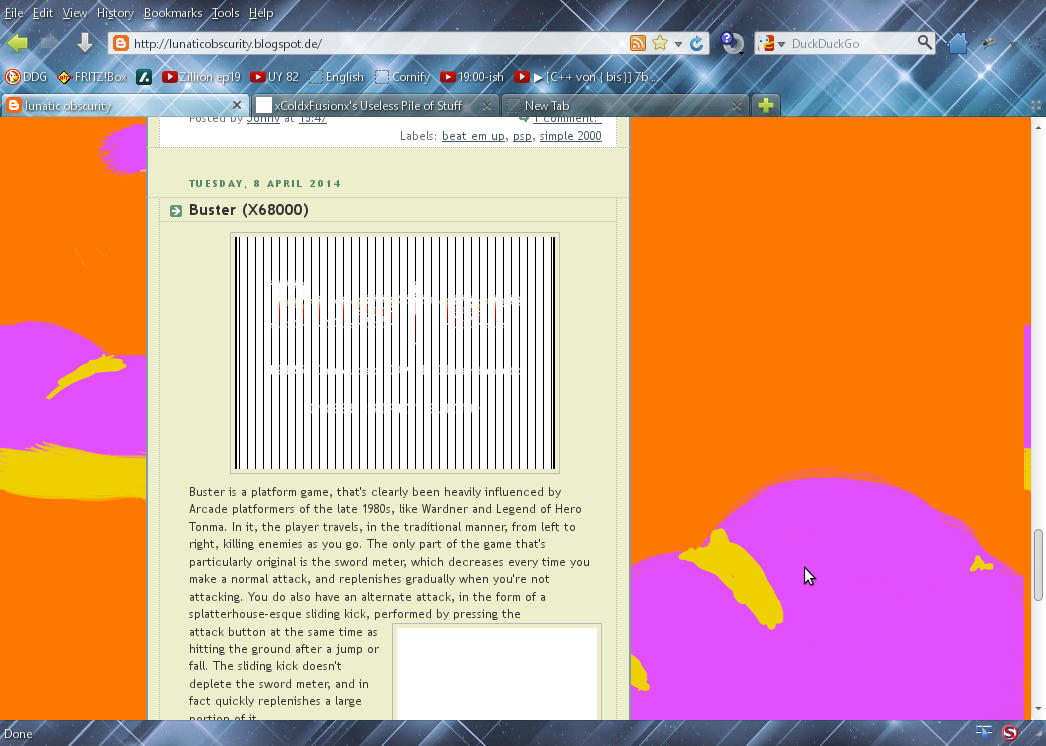

When I replaced the previous version of palemoon4linux with the new one, image rendering became weird on some websites and in the quick access page:

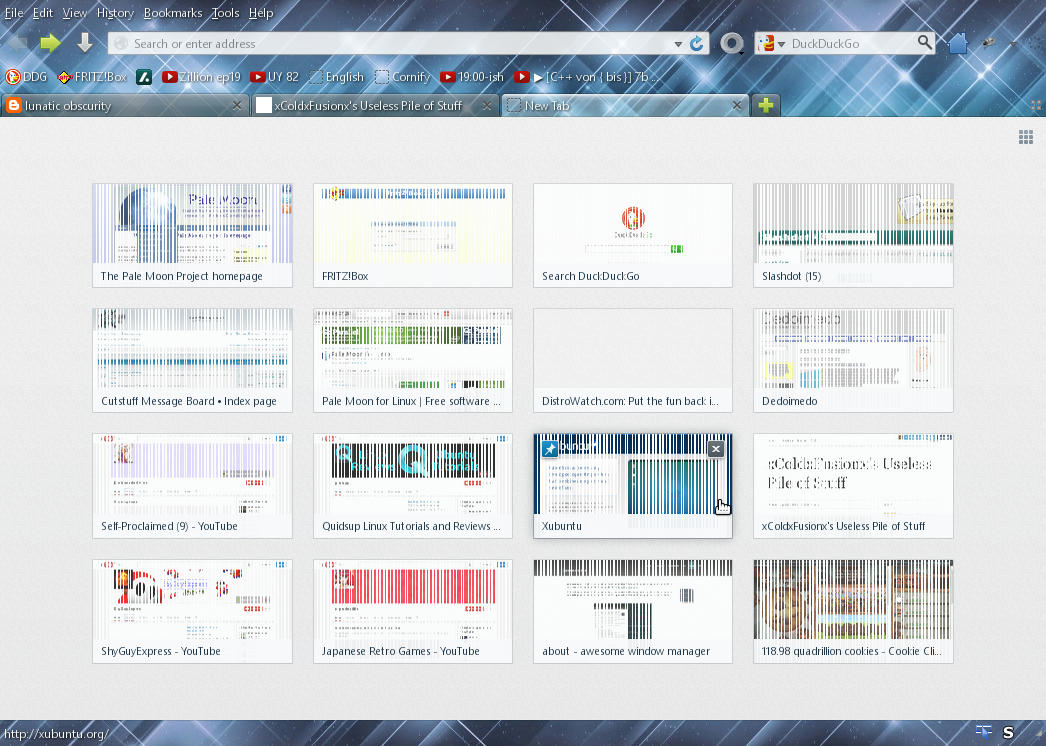

As you can see, some favicons and some images on some websites are displayed incorrectly and the new tab page is also displayed incorrectly. This did not happen in 24.4.2. No other packages were changed when upgrading palemoon.
Last edited by Moonchild on 2014-04-26, 08:57, edited 1 time in total.
Reason: Corrected version number

access2godzilla

Re: Image rendering issues in 24.5

Unread post by access2godzilla » 2014-04-26, 11:07

Very unlikely to be related to Pale Moon itself -- and more likely to be an issue with graphics drivers.

Specs of your graphics hardware? Did you try disabling h/w acceleration? Does rolling back to an old version help?

User avatar
Night Wing
Knows the dark side
Knows the dark side
Posts: 3953
Joined: 2011-10-03, 10:19
Location: Texas, USA

Re: Image rendering issues in 24.5

Unread post by Night Wing » 2014-04-26, 11:40

I typed in the address (lunaticobscurity)in the Show button and the page renders perfectly for me. No problems. Can't help on the New Tab Page since I have it to show a blank page in linux Pale Moon (64-bit) and hardware acceleration is turned off.

The graphics card installed in this desktop computer I'm typing this message on is a Nvidia (GeForce 220) with the 319 driver for linux SolydX.
Linux Mint 19.2 (Tina) Xfce 64 Bit (Default Distribution OS) with 64 Bit linux Pale Moon
Windows 7 Home Premium & Ultimate SP1, 64 Bit (Backup OS) with 32 Bit windows Pale Moon

access2godzilla

Re: Image rendering issues in 24.5

Unread post by access2godzilla » 2014-04-26, 12:37

Doing a bit of experimenting, it seems that only lunaticobscurity gives me that problem, and it occurs regardless of what hardware I try it on. Other pages seem to be fine (including about:newtab).

Although at this moment I don't have much time on my hands, so I'll have a look into this problem next week. Can you specify which version (i686/x86_64) is having this problem?

User avatar
Moonchild
Pale Moon guru
Pale Moon guru
Posts: 24237
Joined: 2011-08-28, 17:27
Location: 58°2'16"N 14°58'31"E
Contact:

Re: Image rendering issues in 24.5

Unread post by Moonchild » 2014-04-26, 13:20

Perhaps a problem with the system-installed libpng?
City of Heroes public server: https://www.moonshard.org/ -- Vote for it on cohservers.com

"If you want to build a better world for yourself, you have to be willing to build one for everybody." -- Coyote Osborne

access2godzilla

Re: Image rendering issues in 24.5

Unread post by access2godzilla » 2014-04-26, 14:06

Pale Moon wasn't compiled with --with_system_* so, no.

I'll have to check whether the recent update in the toolchains I use have anything to do with it. Also have to check if FF ESR and Nightly show these anomalies. But somehow I suspect there won't be any problems with the above.

Moonchild, were there any code changes to the graphics related parts in 24.4.2-> 24.5.0? I _do_ see a few changes that could be of interest, but I get "access denied" on those...

User avatar
Nigaikaze
Board Warrior
Board Warrior
Posts: 1072
Joined: 2014-02-02, 22:15
Location: Chicago, IL, USA

Re: Image rendering issues in 24.5

Unread post by Nigaikaze » 2014-04-26, 15:16

I've also encountered this issue with Pale Moon 24.5.0 on my two SolydK boxes, both the i686 and the x86_64 version. Largely noticed it with the about:newtab page and thumbnail images on imgur.com. I rolled back to 24.4.2 in the meantime since that version works just fine.

Here are the inxi -Gxx results from both boxes if that will help:

i686:

Code: Select all

Graphics:  Card: Advanced Micro Devices [AMD/ATI] RS480 [Radeon Xpress 200 Series] bus-ID: 01:05.0 chip-ID: 1002:5954
           X.Org: 1.14.5 drivers: ati,radeon (unloaded: fbdev,vesa) Resolution: 1280x1024@60.0hz
           GLX Renderer: Gallium 0.4 on ATI RS480 GLX Version: 2.1 Mesa 9.2.2 Direct Rendering: Yes
x86_64:

Code: Select all

Graphics:  Card: NVIDIA GF108 [GeForce GT 630] bus-ID: 01:00.0 chip-ID:10de:0f00
           X.Org: 1.14.5 driver: nvidia Resolution: 1920x1080@60.0hz, 1920x1080@60.0hz
           GLX Renderer: GeForce GT 630/PCIe/SSE2 GLX Version: 4.3.0 NVIDIA 319.76 Direct Rendering: Yes
Nichi nichi kore ko jitsu = Every day is a good day.

aliceif

Re: Image rendering issues in 24.5

Unread post by aliceif » 2014-04-26, 15:41

My system is a rather new Ultrabook with a Haswell-series corei5 and a GeForce 820M.
Because Xubuntu 13.10 is using a Kernel that doesn't seem to support my GPU's driver, I only have intel graphics drivers installed, and not noveau or Nvidia's propietary ones.

I am using the x64 build of palemoon. Hardware acceleration didn't change a thing.
Right now I am using 24.4.2 again, which is displaying images perfectly.

And the website shown isn't the only one where such errors happen. On a few forums avatars hosted on various image sites also aren't displayed correctly.
Last edited by aliceif on 2014-04-26, 16:15, edited 1 time in total.

access2godzilla

Re: Image rendering issues in 24.5

Unread post by access2godzilla » 2014-04-26, 16:10

aliceif wrote:And the website shown isn't the only one where such errors happen. On a few forums avatars hosted on various image sites also aren't displayed correctly.
Yeah, seems you're right. Every other site seems to be broken, even images on my local server :(
Please use 24.4.2 while I investigate the issues. I've also staged the 24.5.0 folder to prevent other people downloading this version. The updater should allow you to roll back to 24.4.2.

access2godzilla

Re: Image rendering issues in 24.5

Unread post by access2godzilla » 2014-04-27, 12:34

The recent transition from gcc/g++ 4.7.2->4.8.2 seems to be the cause of the problem (although I'm not sure why the compiler would break image decoding). Pale Moon 24.5.0 built with previous gcc/g++ versions will be released tomorrow.

User avatar
Night Wing
Knows the dark side
Knows the dark side
Posts: 3953
Joined: 2011-10-03, 10:19
Location: Texas, USA

Re: Image rendering issues in 24.5

Unread post by Night Wing » 2014-04-27, 13:02

access2godzilla wrote:Pale Moon 24.5.0 built with previous gcc/g++ versions will be released tomorrow.
Will this be version 24.5.1?
Linux Mint 19.2 (Tina) Xfce 64 Bit (Default Distribution OS) with 64 Bit linux Pale Moon
Windows 7 Home Premium & Ultimate SP1, 64 Bit (Backup OS) with 32 Bit windows Pale Moon

User avatar
Moonchild
Pale Moon guru
Pale Moon guru
Posts: 24237
Joined: 2011-08-28, 17:27
Location: 58°2'16"N 14°58'31"E
Contact:

Re: Image rendering issues in 24.5

Unread post by Moonchild » 2014-04-27, 13:13

access2godzilla wrote:The recent transition from gcc/g++ 4.7.2->4.8.2 seems to be the cause of the problem (although I'm not sure why the compiler would break image decoding). Pale Moon 24.5.0 built with previous gcc/g++ versions will be released tomorrow.
Yeah, always be very careful when upgrading your compiler. You have to realize that the code is very complex, and compiler bugs are relatively commonplace to pop up when building Firefox code. If you have a compiler that works, stick with it.

Image decoding uses highly optimized machine code (lots of inline asm etc.) - it's needed because it's a "critical path" where every CPU tick counts, but of course makes it very sensitive to any compiler or linker bugs.
City of Heroes public server: https://www.moonshard.org/ -- Vote for it on cohservers.com

"If you want to build a better world for yourself, you have to be willing to build one for everybody." -- Coyote Osborne

User avatar
Moonchild
Pale Moon guru
Pale Moon guru
Posts: 24237
Joined: 2011-08-28, 17:27
Location: 58°2'16"N 14°58'31"E
Contact:

Re: Image rendering issues in 24.5

Unread post by Moonchild » 2014-04-27, 13:15

Night Wing wrote:
access2godzilla wrote:Pale Moon 24.5.0 built with previous gcc/g++ versions will be released tomorrow.
Will this be version 24.5.1?
Better not. I don't think a special version # would be needed but you could mark it as "r2" or something? Depends on how many people downloaded the first build before it was pulled off the wire, I guess.
City of Heroes public server: https://www.moonshard.org/ -- Vote for it on cohservers.com

"If you want to build a better world for yourself, you have to be willing to build one for everybody." -- Coyote Osborne

access2godzilla

Re: Image rendering issues in 24.5

Unread post by access2godzilla » 2014-04-27, 13:27

No, this will be 24.5.0. I'll not bump version numbers for something not involving code changes. And r2 will not match the rather aggressive regex used in the installer, so I will stick to the above.

You have to do a full uninstall+install if you're using the installer and updated to the broken version.

access2godzilla

Re: Image rendering issues in 24.5

Unread post by access2godzilla » 2014-04-28, 07:07

The new builds of 24.5.0 have now been released.

User avatar
Nigaikaze
Board Warrior
Board Warrior
Posts: 1072
Joined: 2014-02-02, 22:15
Location: Chicago, IL, USA

Re: Image rendering issues in 24.5

Unread post by Nigaikaze » 2014-04-28, 12:53

Confirming that this resolved the image rendering issue for me. Thanks access2godzilla!
